Re: the start of making it mine
« Reply #130 on: July 30, 2019, 01:31:50 PM »
still two days ago, after hitting it with a block of alloy and a hammer.




after much bending and adjusting looks like this.


 the notches are to allow me to bend the tops in 90deg, this was a bad idea as I found out later it distorted the bend so I had to hammer the tops flat and readjust the bends on both mounts.
« Last Edit: July 30, 2019, 01:32:31 PM by Perfictsib »

Online Perfictsib

  • CB500X Pro
  • ***
  • Posts: 122
  • Country: wales
    • View Profile
  • Bike: 2017 CB500x
  • City / Town: Newport
Re: the start of making it mine
« Reply #131 on: July 30, 2019, 01:43:24 PM »
yesterday trying screen for size in middle position


top position


middle position height 45mm(bad camera angle)


distance from front cowl/clocks ????(don't know what you call it)

Online Perfictsib

  • CB500X Pro
  • ***
  • Posts: 122
  • Country: wales
    • View Profile
  • Bike: 2017 CB500x
  • City / Town: Newport
Re: the start of making it mine
« Reply #132 on: July 30, 2019, 02:06:12 PM »

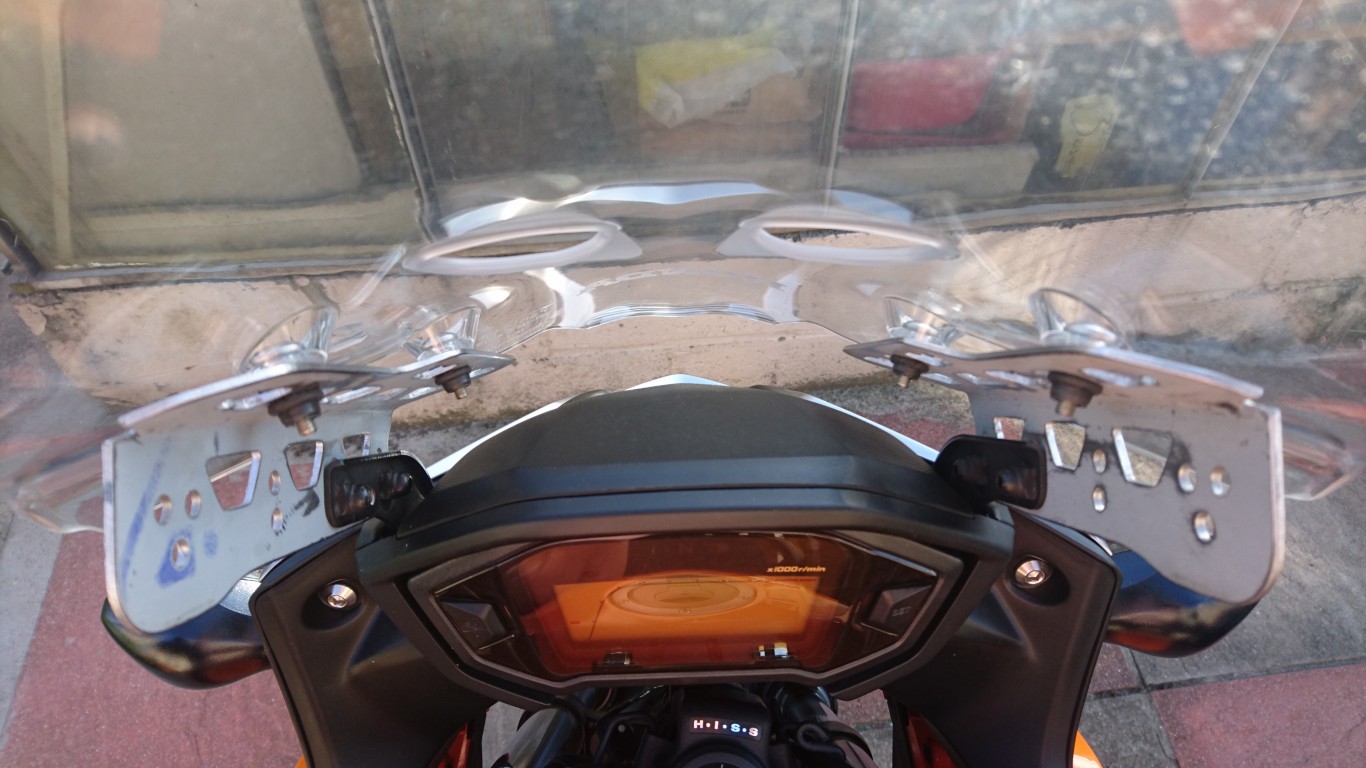

view from top before I bent the ends in.


side view


im also making a phone/satnav mount bar out of a bent pair of handle bars complete with threaded ends.

still got to tweak the bend on one mount as the screen is touching it, then im going to tac weld some strengtheners in so the mounts cant flex.

worst bit is I came up with a simpler way to give me the adjustment I wanted and use the oem mounts while I was still filling the holes out, once I will finish this I will have a pair of oem mounts to play with
« Last Edit: July 30, 2019, 03:04:49 PM by Perfictsib »

Online Perfictsib

  • CB500X Pro
  • ***
  • Posts: 122
  • Country: wales
    • View Profile
  • Bike: 2017 CB500x
  • City / Town: Newport
Re: the start of making it mine
« Reply #133 on: July 30, 2019, 02:11:21 PM »
theres more
next project after screen involves these


and these

Online Perfictsib

  • CB500X Pro
  • ***
  • Posts: 122
  • Country: wales
    • View Profile
  • Bike: 2017 CB500x
  • City / Town: Newport
Re: the start of making it mine
« Reply #134 on: August 25, 2019, 05:23:37 PM »
hi everyone.
the screen mounts are now done and i'm happy enough with them to actually fit them, I also made satnav and mobile phone adapters out of some handlebar pinch clamps as I didn't like the ram style mounts.
(I was tempted to try and make a long ram bar/split tube that would fit between the screen mounts, the satnav ball mount and phone ball mount would then attach directly to it)




this is how it looks with satnav and phone


there is also a usb socket just behind the screen bracket top bolt.

Online Perfictsib

  • CB500X Pro
  • ***
  • Posts: 122
  • Country: wales
    • View Profile
  • Bike: 2017 CB500x
  • City / Town: Newport
Re: the start of making it mine
« Reply #135 on: August 25, 2019, 05:58:14 PM »
heres my temporary permanent fuse box complete with earth plate and post to power it all.


found this on ebay so snapped it up

and it now looks like this im just waiting for some new bolts to arrive before fitting it.

one less item on the list to get now

haven't had a chance to see if having the screen 45mm higher makes any difference to noise (only fitted it all yesterday) I know with out the screen its a lot quieter.
I will post my findings


Online ewryly

  • CB500X Master
  • ****
  • Posts: 717
  • Country: us
    • View Profile
  • Bike: CB500X 2018
  • City / Town: West Hartford
Re: the start of making it mine
« Reply #136 on: August 25, 2019, 06:18:28 PM »
Impressive! Nice and tidy!

Online Perfictsib

  • CB500X Pro
  • ***
  • Posts: 122
  • Country: wales
    • View Profile
  • Bike: 2017 CB500x
  • City / Town: Newport
Re: the start of making it mine
« Reply #137 on: August 25, 2019, 07:07:34 PM »
Cheers ewryly
