Re: cbr600f4 rear shock spring thoughts
Reply #30 on: March 11, 2019, 04:47:46 PM
Revision.2 for the record.

Measurements of the oem cbr600f4 spring/shock specifications;

Weight 1.31 kilogram
Free total length oem = 156.0 mm
Position 1 max length oem = 139.2 mm
Preload static oem = 16.8 mm (V. 13mm)(G. 14mm)
Wire diameter oem = 12.5 mm (with paint)

6.0 coils (full 360 wire diameter)

------------------------------------------------
Bottom inner diameter spring = 59.5 mm
Bottom outer diameter spring = 85 mm

Top inner diameter spring = 52 mm
Top outer diameter spring = 77 mm

Bottom inner seat (spring) diameter = 58mm
Bottom outer seat diameter = 75mm

Top inner seat (spring) diameter = 50.5 mm
Top outer seat diameter = 70 mm

-----------------------------------------------------------------------------------------

Eibach spring measurement specifications type 0600.225.0700

Weight  1.02 kilogram
Free total length        = 152.7 mm (with paint)
Position 1 max length = 137.7 mm       '' (will be)
Preload static         = +/- 15 mm (margin 13-17 mm from 3 known/found values)

Wire diameter = 12.0 mm      (with paint)
Spring outer diameter = 83 mm     ''
Spring inner diameter = 58-59 mm      ''

5.5 coils (full 360 wire diameter)

Lower spring seat oem fits nicer/better/tighter within the Eibach spring. No further action required.
Upper seat needs new machined spacer

----------------------------------------------------------------------------------------------------

CB500X specifications will follow in time.


Last Edit: March 11, 2019, 05:09:27 PM by Rexelstar
CB500XA
XL500Sa nos
XR500za Hybrid
XR250Rk nos
NX650 in progress..

Offline Rexelstar

  • CB500X Member
  • **
  • Topic Author
  • Posts: 90
  • SAME OLD DIRT, SAME OLD BIKES, SAME OLD FUN.
  • Bike: CB500X
  • Country: es
Re: cbr600f4 rear shock spring thoughts
Reply #31 on: April 07, 2019, 07:44:40 PM
Final for the record.

Oem cbr600f4 spring/shock specifications;

Weight 1.31 kilogram
Free total length oem = 156.0 mm
Position 1 max length oem = 139.2 mm
Preload static oem = 16.8 mm
Wire diameter oem = 12.5 mm (with paint)

6.0 coils (full 360 wire diameter)

------------------------------------------------
Bottom inner diameter spring = 59.5 mm
Bottom outer diameter spring = 85 mm

Top inner diameter spring = 52 mm
Top outer diameter spring = 77 mm

Bottom inner seat (spring) diameter = 58mm
Bottom outer seat diameter = 75mm

Top inner seat (spring) diameter = 50.5 mm
Top outer seat diameter = 70 mm

-----------------------------------------------------------------------------------------

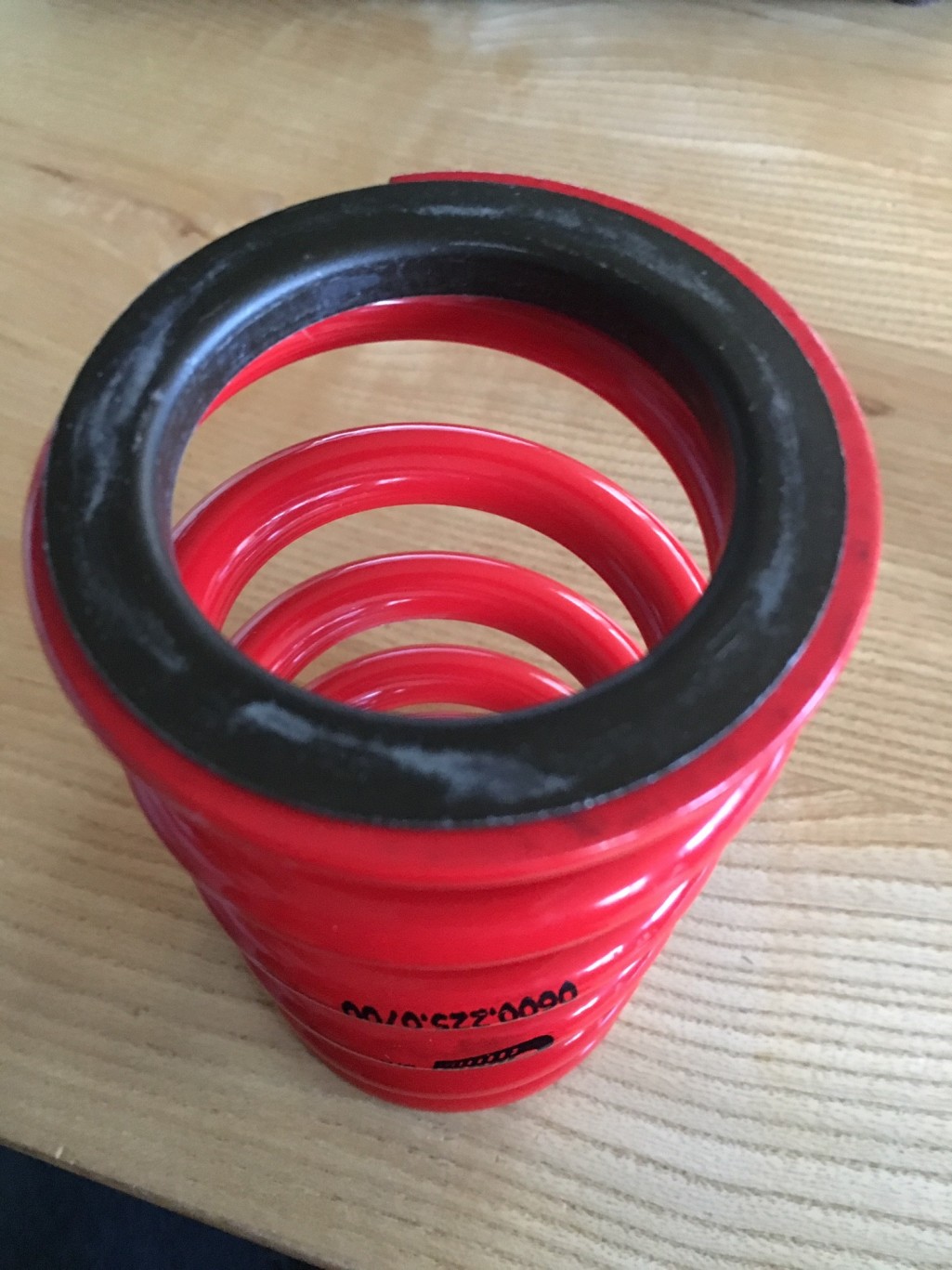

Eibach spring specifications type 0600.225.0700

Weight  1.02 kilogram
Free total length        = 152 mm
Position 1 max length = 133.5 mm
Preload static            =   18.5 mm

New machined aluminum spacer thickness = 6 mm

Wire diameter = 12.0 mm      (with paint)
Spring outer diameter = 83 mm     ''
Spring inner diameter = 58-59 mm      ''

5.5 coils (full 360 wire diameter)

----------------
Racetech seats do not fit, different inner/outer diameters. Made of some kind tin can metal...so into the garbage can. Bad quality stuff...

Time will tell after testing;)


Last Edit: April 07, 2019, 07:50:39 PM by Rexelstar
CB500XA
XL500Sa nos
XR500za Hybrid
XR250Rk nos
NX650 in progress..

Offline Rexelstar

  • CB500X Member
  • **
  • Topic Author
  • Posts: 90
  • SAME OLD DIRT, SAME OLD BIKES, SAME OLD FUN.
  • Bike: CB500X
  • Country: es
Re: cbr600f4 rear shock spring thoughts
Reply #32 on: April 07, 2019, 07:46:13 PM
End result..


CB500XA
XL500Sa nos
XR500za Hybrid
XR250Rk nos
NX650 in progress..

Offline EscCtrl

  • CB500X God-zilla
  • *****
  • Posts: 3226
  • Country: us
Re: cbr600f4 rear shock spring thoughts
Reply #33 on: April 08, 2019, 01:06:20 AM
Well done.  :062:

Offline Rexelstar

  • CB500X Member
  • **
  • Topic Author
  • Posts: 90
  • SAME OLD DIRT, SAME OLD BIKES, SAME OLD FUN.
  • Bike: CB500X
  • Country: es
Re: cbr600f4 rear shock spring thoughts
Reply #34 on: October 27, 2019, 09:43:52 AM
The shock works great after some adjustments.

Together with S22 tires the bike has become very stable. Great for the Spain mountain roads.
First time I hit the tarmac with the pegs, without attention..

Ordered the front fork 2019 inner springs, inner tubes and 0-rings for 63 euro incl. shipping from the US. Taxes and other are 24 euro, total costs 87 euro.

The dealer price difference is unbelievable.. (EU x +/_4)

Last Edit: October 27, 2019, 09:54:04 AM by Rexelstar
CB500XA
XL500Sa nos
XR500za Hybrid
XR250Rk nos
NX650 in progress..

Offline timur

  • CB500X Pro
  • ***
  • Posts: 310
  • Country: es
Re: cbr600f4 rear shock spring thoughts
Reply #35 on: October 27, 2019, 05:07:00 PM
Hello Rexelstar! What adjustments you made to the shock? Did you modified the damping characteristics?

Regards,

Timur

Offline Rexelstar

  • CB500X Member
  • **
  • Topic Author
  • Posts: 90
  • SAME OLD DIRT, SAME OLD BIKES, SAME OLD FUN.
  • Bike: CB500X
  • Country: es
Re: cbr600f4 rear shock spring thoughts
Reply #36 on: October 27, 2019, 05:42:36 PM
The oil hose coupling did hit the frame, we had to slightly bend it carefully.
Next time needs a 90 degree coupling..

Further some adjustment of the compression and rebound knobs.
Spring tension set on position 1.

Now the rear is very stable, the front fork 2018 suspension feels more jumpy. Or is it me..

Next time in Spain we install the 2019 inner front fork parts. Hopefully it is the right decision.

When finished you are welcome for a test drive;)

A second opinion is always appreciated.



Last Edit: October 27, 2019, 06:22:17 PM by Rexelstar
CB500XA
XL500Sa nos
XR500za Hybrid
XR250Rk nos
NX650 in progress..

Offline timur

  • CB500X Pro
  • ***
  • Posts: 310
  • Country: es
Re: cbr600f4 rear shock spring thoughts
Reply #37 on: October 27, 2019, 07:48:51 PM
Yes - OEM fork it's not the best one. Hope that 2019 parts will improve the handling. IMO CB500X has a good chasis - a bit of suspension tweaking do a lot. It's funny to see >120HP bikes struggling to left behind this little 500 twin on twisty roads  :745:

Offline Rexelstar

  • CB500X Member
  • **
  • Topic Author
  • Posts: 90
  • SAME OLD DIRT, SAME OLD BIKES, SAME OLD FUN.
  • Bike: CB500X
  • Country: es
Re: cbr600f4 rear shock spring thoughts
Reply #38 on: December 22, 2019, 07:09:27 PM
After a lot of testing the rear shock is to harsh for me (85kg) so decided to replace with the Ohlins version.

The cbr600 f4 shock is now available for a reasonable offer. Shock has new oil, spring, seals etc. Set up as written/shown above.
Last Edit: December 22, 2019, 07:10:29 PM by Rexelstar
