T-rex Racing Heavy Duty Skid Plate installed ...
« on: February 29, 2020, 02:04:51 AM »

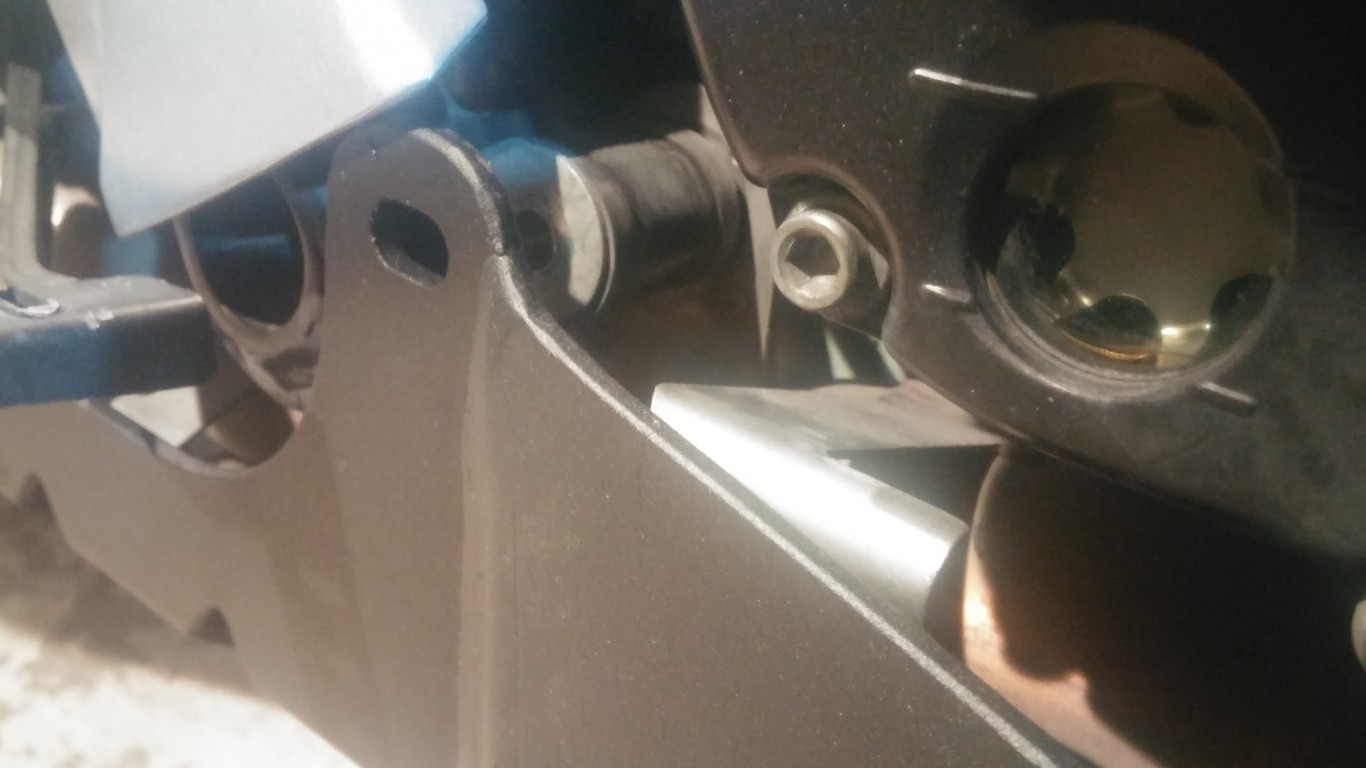

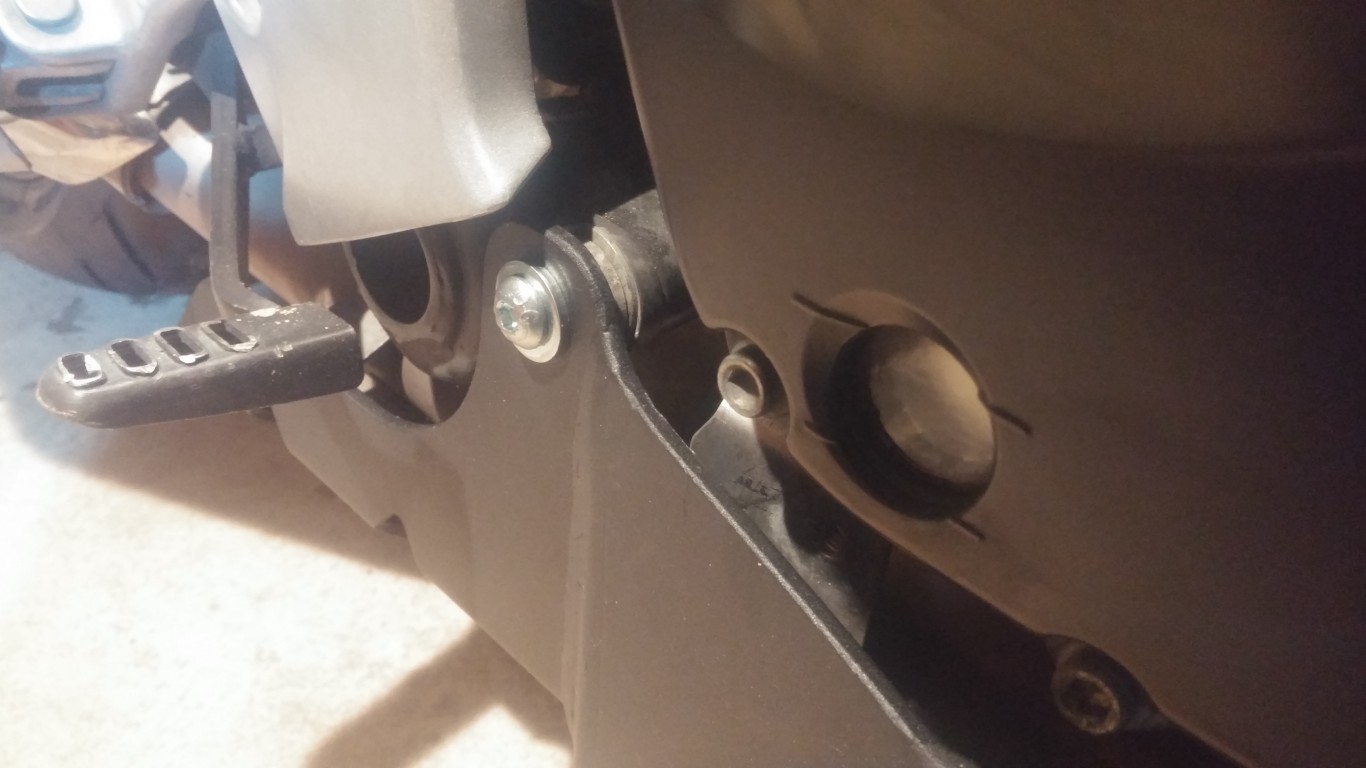

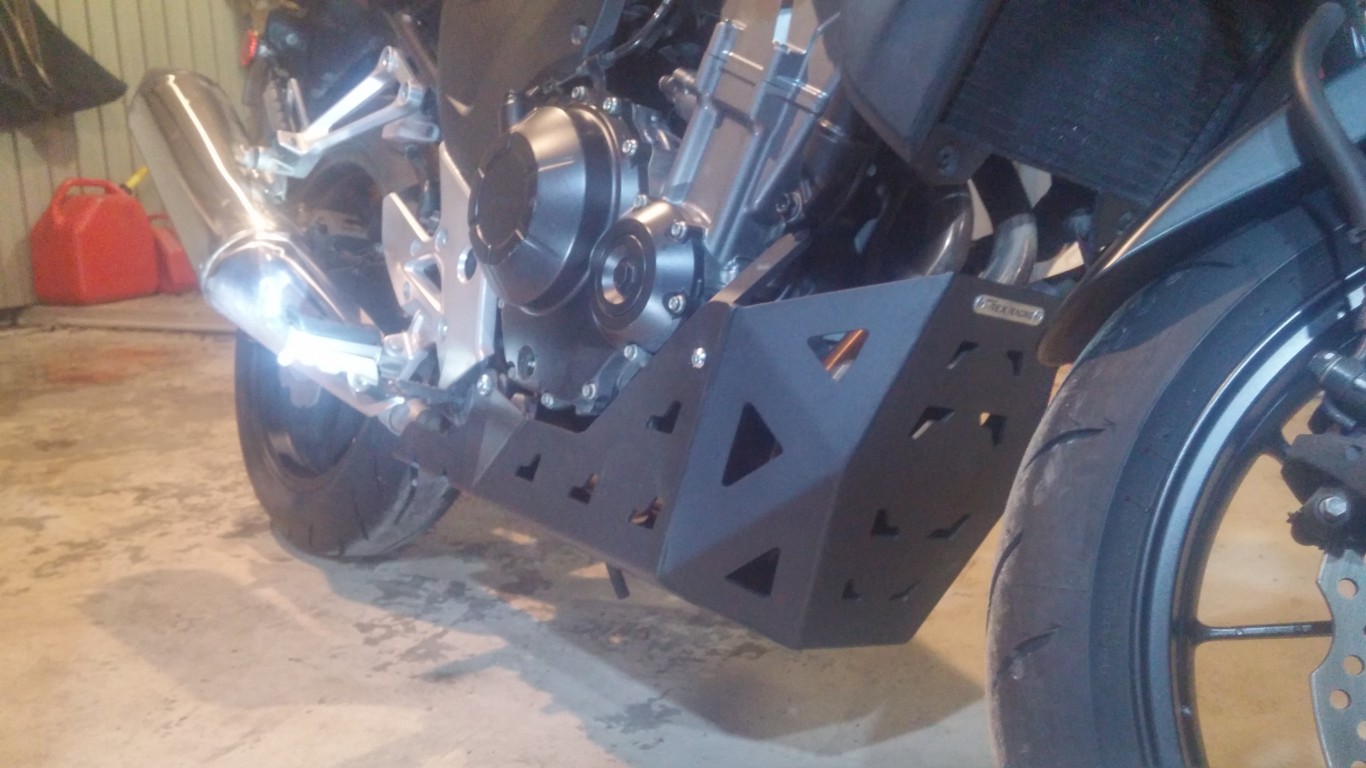

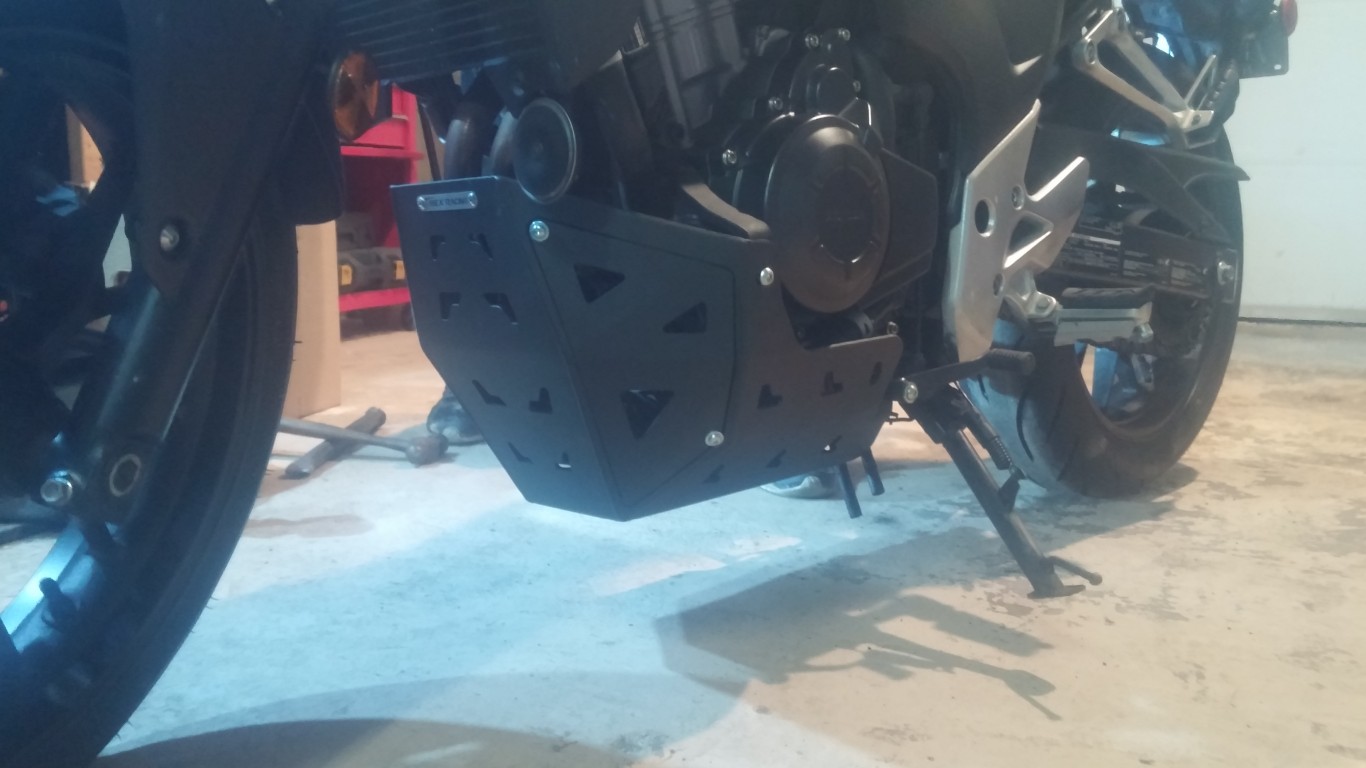

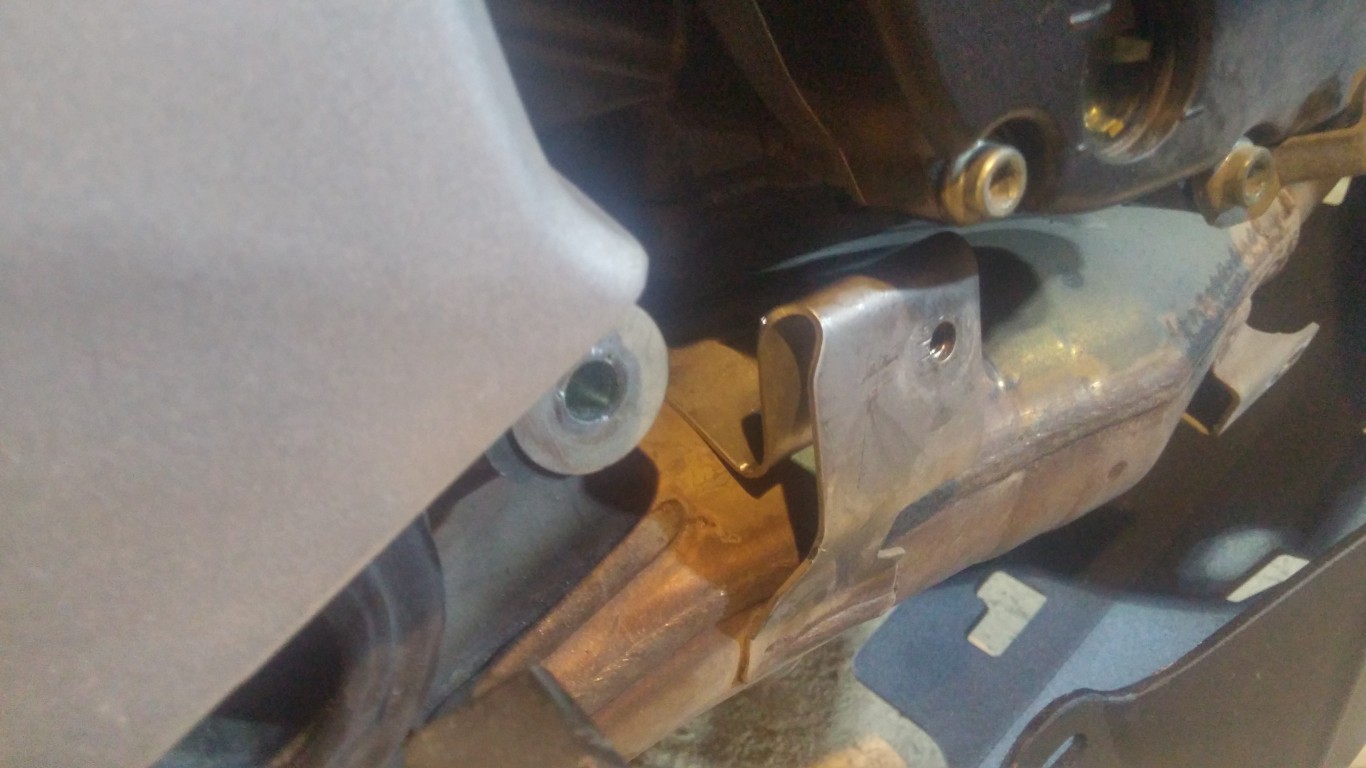

I had few issues with the installation on my 2013,  , the included 2 short bolts were too short to be used with the included washers, there was a 1/4 inch gap on the right side where the long bolt goes , had to use 1 of 2 spacers previously removed from the upper brackets installation, and finally , 2013-2015 , heat shield has 3 bolts , the one in the middle is in the way , had to bent it ( or cut it) , 2016-18 has 2 bolts so you would be fine. I need to fix teh shifter , its a little loose with the new included plastic spacer . I paid 390 CAD tax included,free shipping from excelmoto  5 days delivery(from US) , I bought my 2013 last week , my first street bike , I have to wait until june to ride it when I get my training and license . I will ride it earlier in the trail near my home , i am also proud owner of 700xx for 10 years now . My next Mod tomorrow is Aukee H4 led headlight bulb, 50W 6000K 10000 Lumens , then SW crashbar , then oxford heated grip ... and handguards .




« Last Edit: February 29, 2020, 02:18:14 AM by ulfheonar »

Offline Twempie

  • CB500X Pro
  • ***
  • Posts: 156
  • Country: us
    • View Profile
  • City / Town: Seattle
Re: T-rex Racing Heavy Duty Skid Plate installed ...
« Reply #1 on: February 29, 2020, 04:49:16 AM »
Its great that you took the time to post your experiences, and take photos. Some projects are great... once theyre installed :)

Offline rambrose

  • CB500X Pro
  • ***
  • Posts: 157
  • Country: gb
    • View Profile
  • Bike: YBR125 & CB500X
  • City / Town: Plymouth
Re: T-rex Racing Heavy Duty Skid Plate installed ...
« Reply #2 on: February 29, 2020, 11:17:45 AM »
Nice to see a different one. Is that an access panel for the oil filter on the left?
Apologise if its obvious but I'm looking on my phone without my glasses
2017 CB500x ABS. RR Lvl1 forks. Fender extenders. Fr Fender riser. Honda centre stand. Oxford advanced pro touring heated grips. Barkbuster VPS guards. Bar riser. GPS bar. Zumo660. Take2 mirrors. Clip on screen deflector. Carbon light bar & spotlights. RR foot pegs. Rotopax fuel can. Rr led light repeaters. Givi Trekker 46Ltr top box, 33ltr panniers

Offline ulfheonar

  • CB500X Newbie
  • *
  • Posts: 8
  • Country: ca
    • View Profile
  • City / Town: pont-rouge
Re: T-rex Racing Heavy Duty Skid Plate installed ...
« Reply #3 on: February 29, 2020, 11:45:39 AM »
yes it is , I intended to buy their crashbar as well but I wont because completely covers the door , but otherwise design seems really good with included sliders.

Offline AJC500

  • CB500X God
  • *****
  • Posts: 1627
  • Country: scotland
    • View Profile
  • Bike: 2017 CB500X ABS
Re: T-rex Racing Heavy Duty Skid Plate installed ...
« Reply #4 on: February 29, 2020, 11:56:00 AM »
Looks very "Mad Max"!!   :132:
The Story So Far.........
2017-2019: 12000mls recreational use - 89.73mpg UK; 74.72mpg US; 3.15litres/100km

Offline JoeD

  • CB500X Member
  • **
  • Posts: 40
  • Country: us
    • View Profile
  • Bike: 2018 CB500X
  • City / Town: Fallbrook
Re: T-rex Racing Heavy Duty Skid Plate installed ...
« Reply #5 on: February 29, 2020, 05:33:39 PM »
Definitely looks veery heavy duty. How much does that skid plate weigh?

Offline ulfheonar

  • CB500X Newbie
  • *
  • Posts: 8
  • Country: ca
    • View Profile
  • City / Town: pont-rouge
Re: T-rex Racing Heavy Duty Skid Plate installed ...
« Reply #6 on: February 29, 2020, 07:14:11 PM »
I dont know , maybe 6-7 pounds . , 4mm thick alum.

Offline woody

  • CB500X Pro
  • ***
  • Posts: 422
  • Country: gb
    • View Profile
  • Bike: CB500X
  • City / Town: The Fens
Re: T-rex Racing Heavy Duty Skid Plate installed ...
« Reply #7 on: February 29, 2020, 07:27:58 PM »
Like it  :152:
