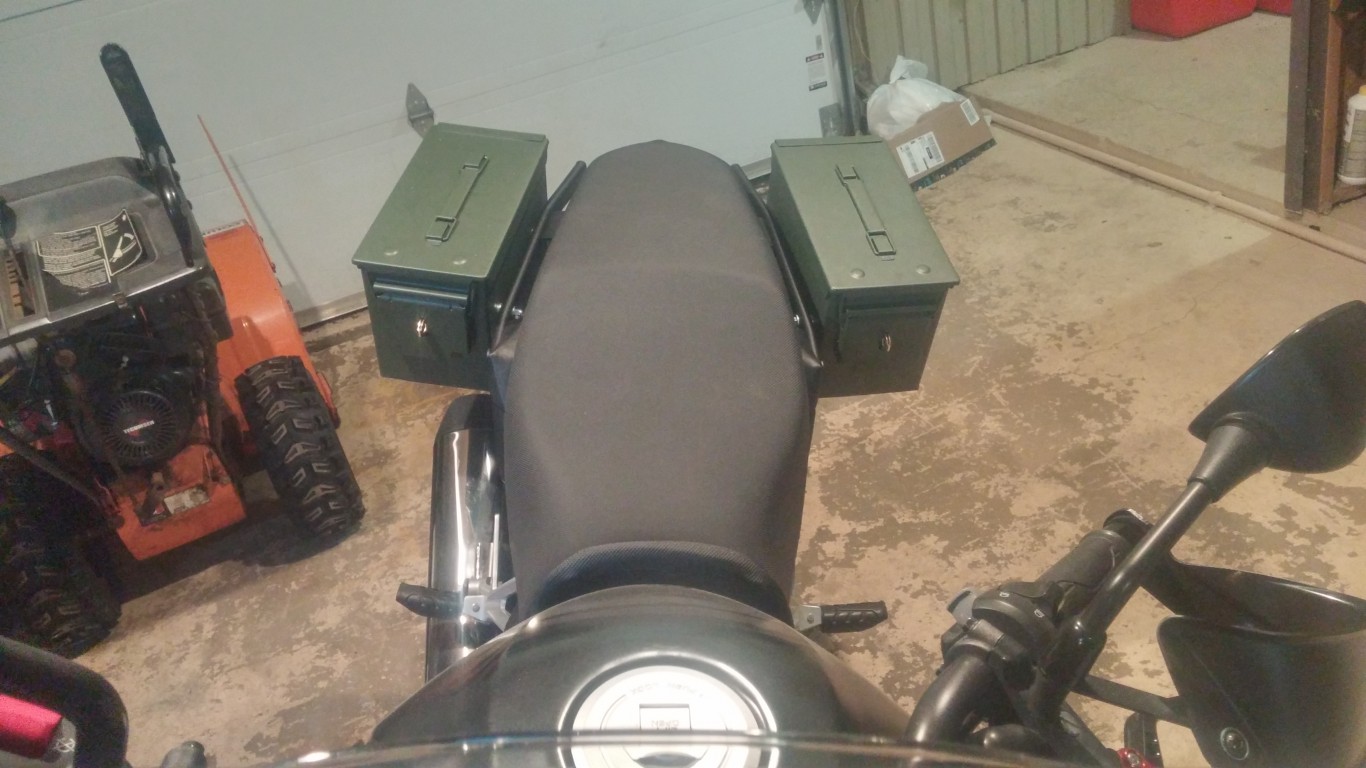

New ammo-case panniers installed
« on: March 14, 2020, 08:46:50 PM »
25 $CAD x 2 green ammo cases Fortress 50( 8 Liters each ), i think theyre 6 pounds each . (black ammo were 50$CAD each)
150$ CAD  Givi Specific Kit to Fix PLX1121 - 1121KIT | Honda CB500X 2013-2018 ( swmotech has bracket kit , looks sturdier but was more expensive)
50$ CAD aluminium angle bar + screws + locks + spray can paint + stuff

first heres my mods to the ammo cases
1 - cut / removed the side handle
2 - removed 1 pin from the cover , drilled the first hole so 10-32 ,1 inch screw get through with loktite ,then the second hole taped 10/32 . ( cover wont fall ever gain )

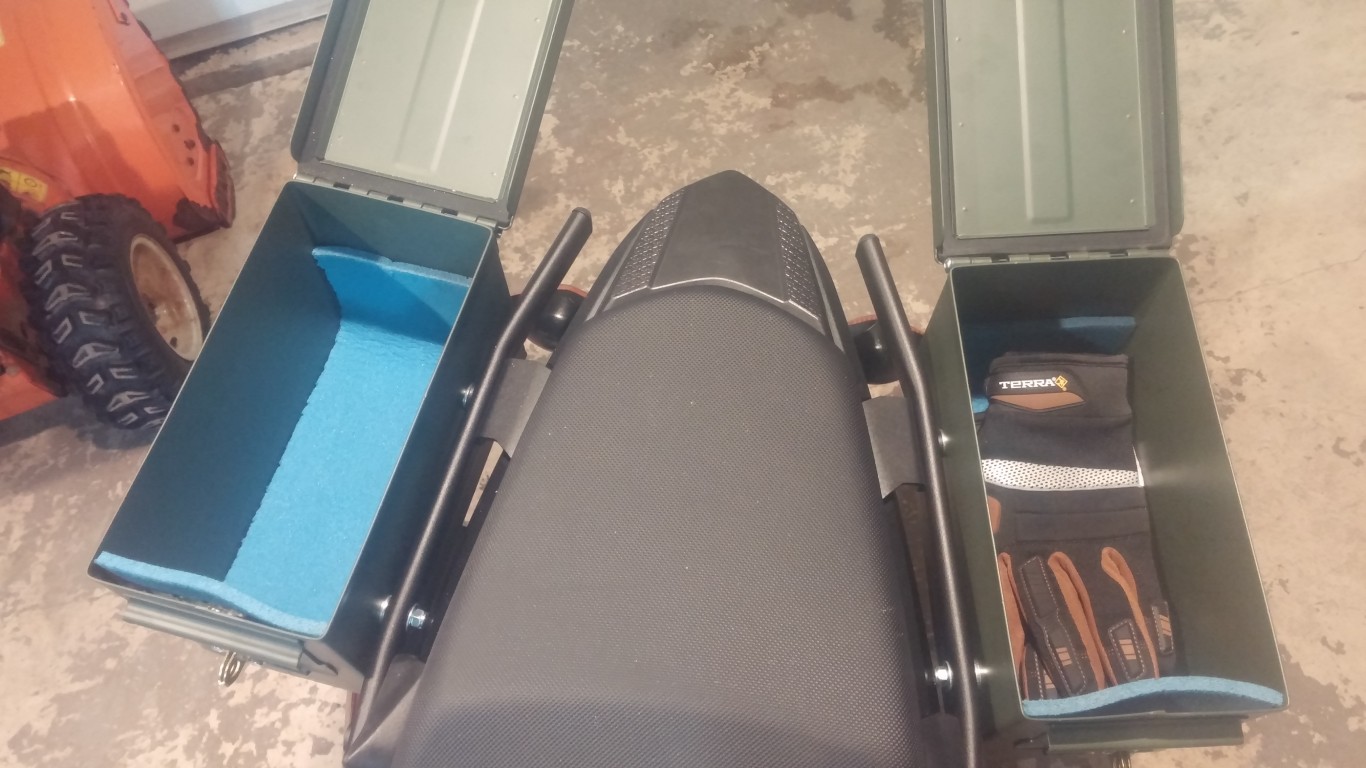

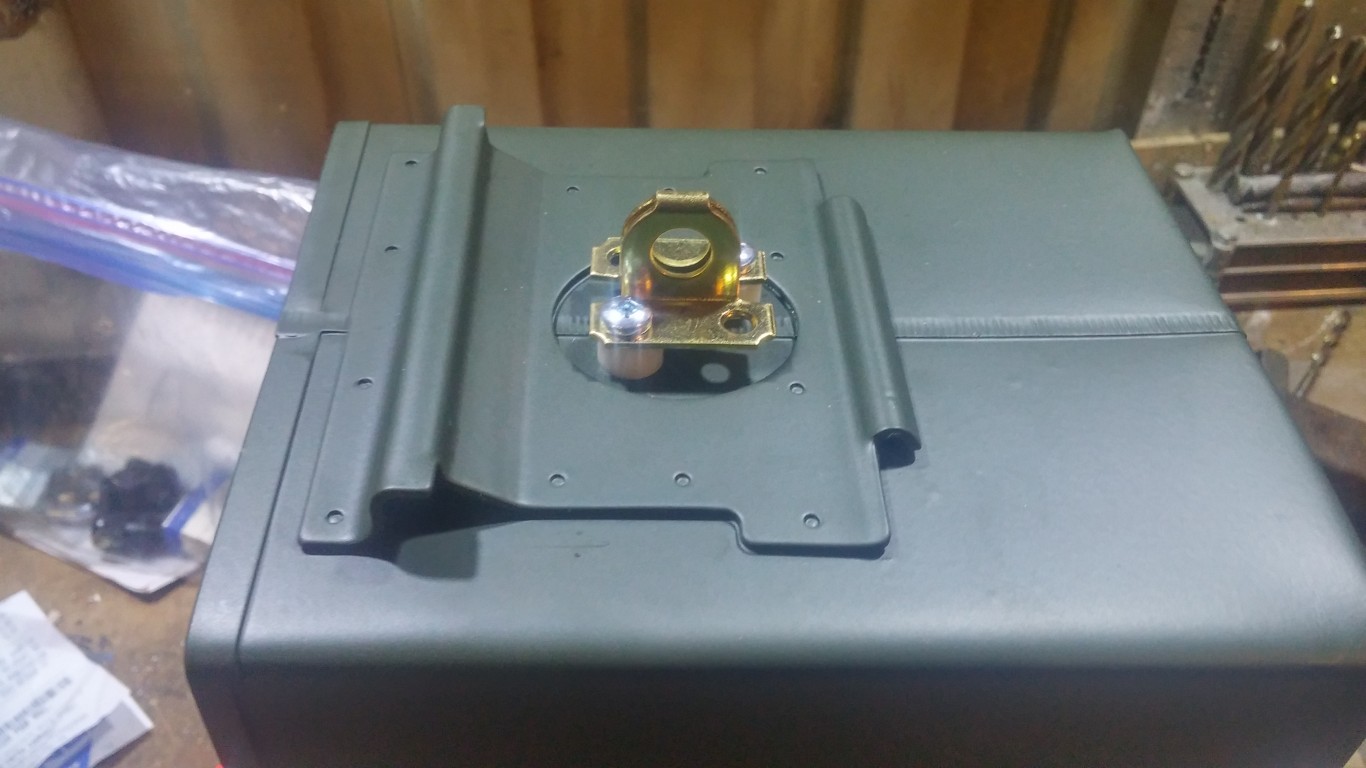

3 - installed a lock , had to cut a bigger hole .

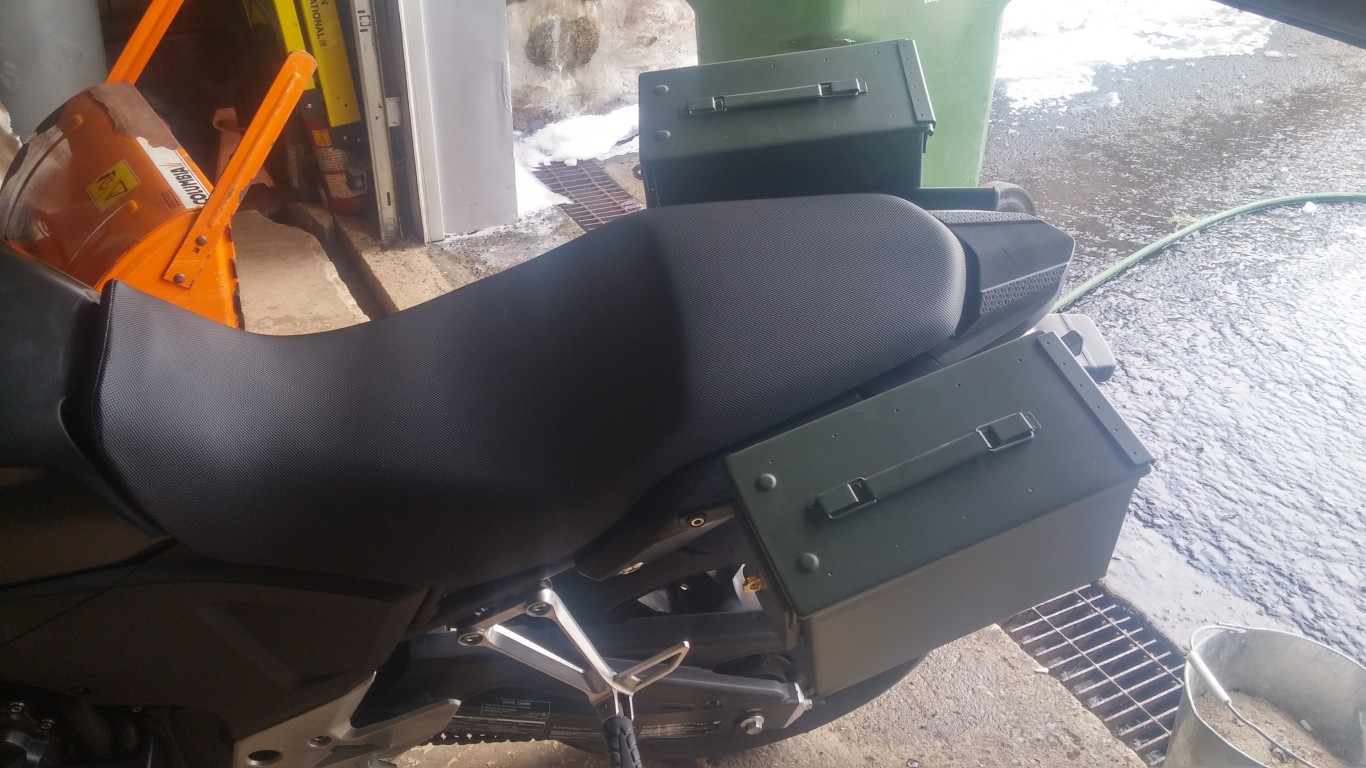

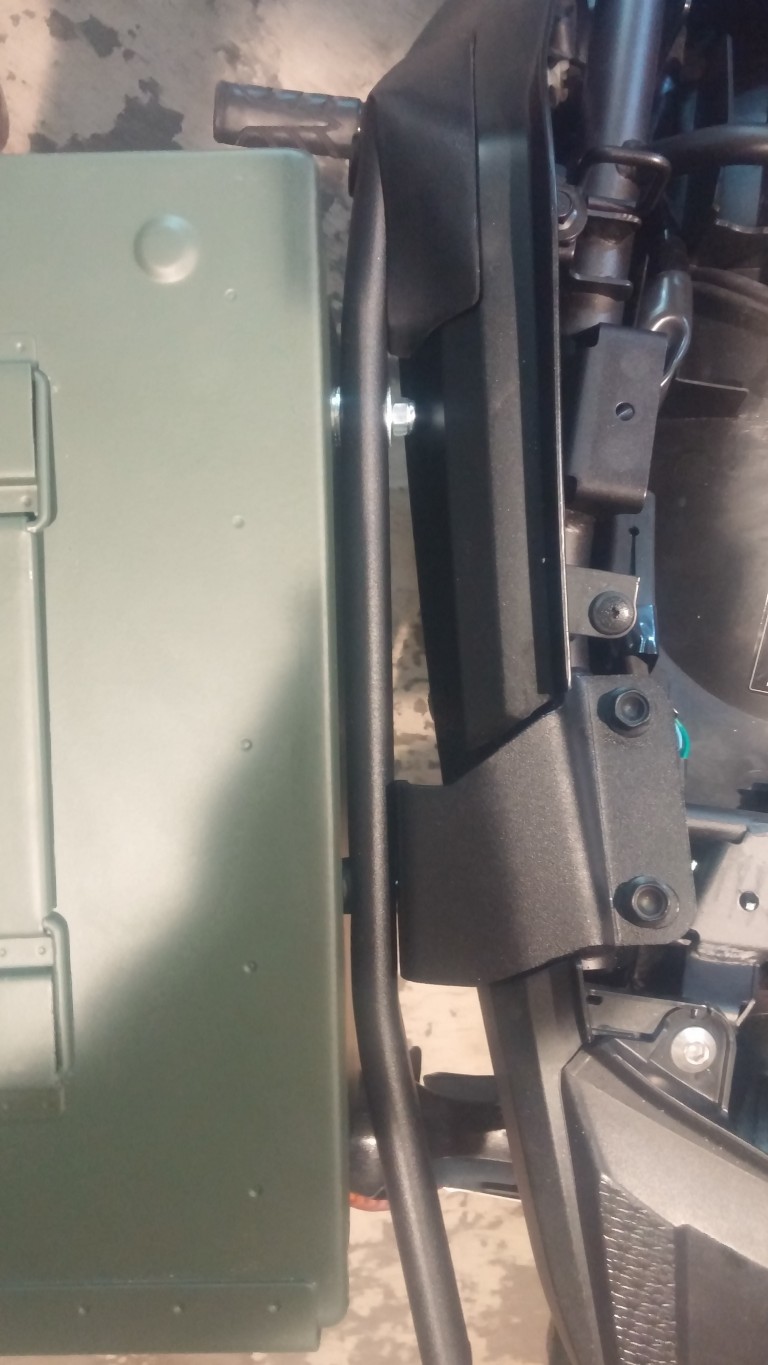

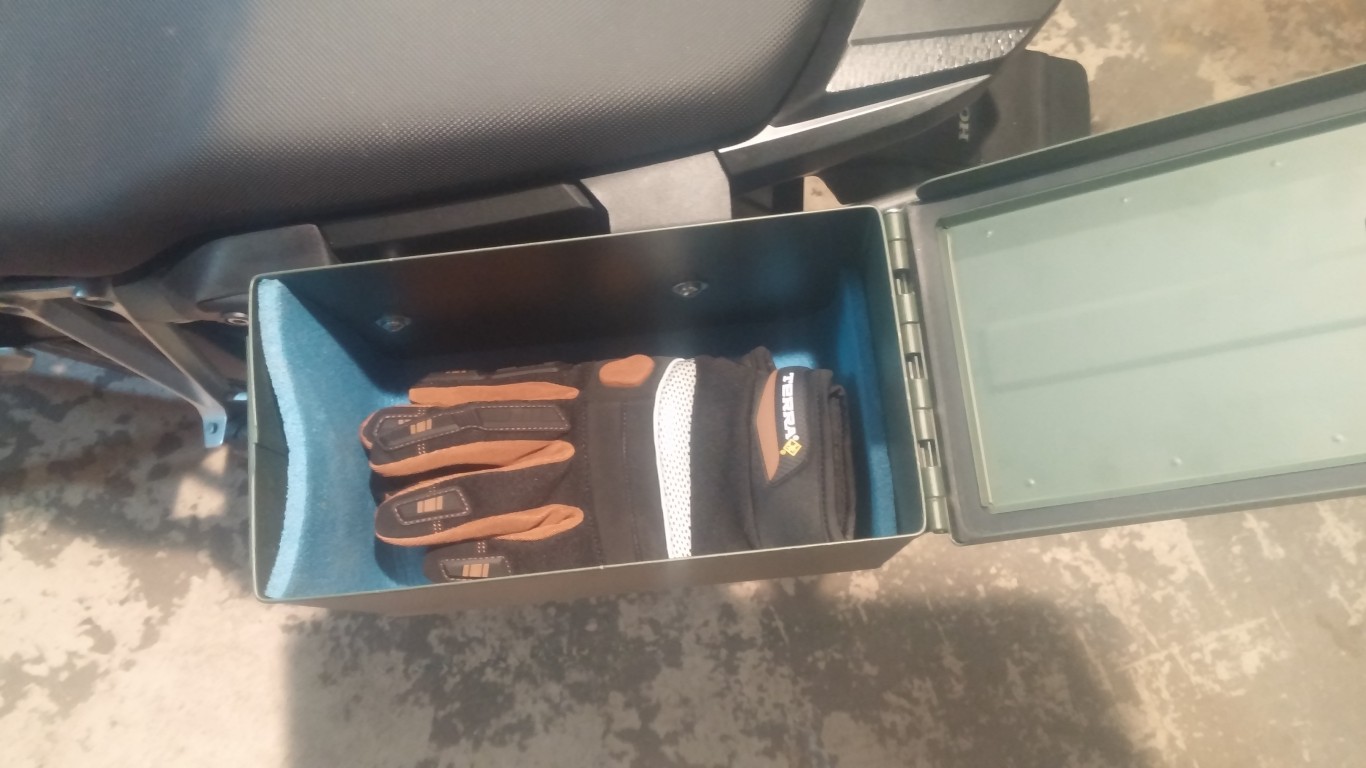

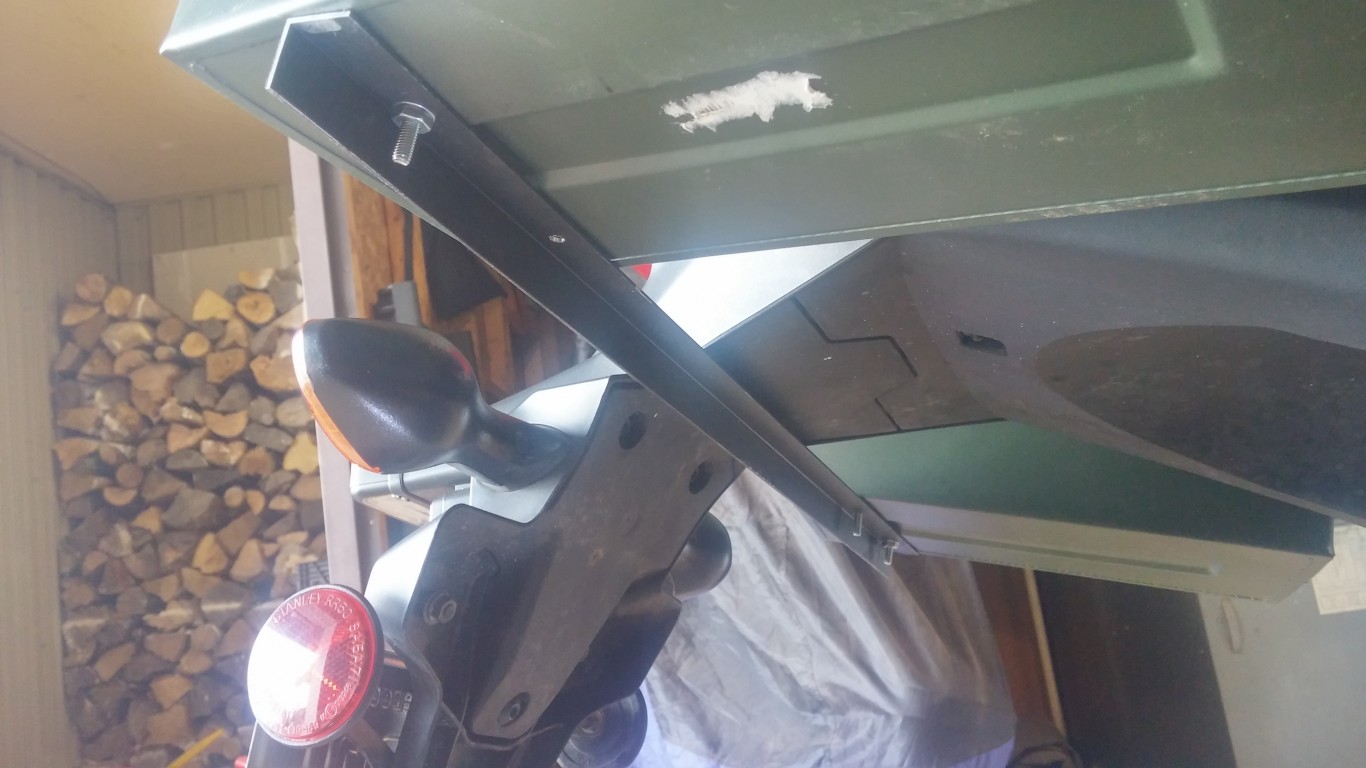

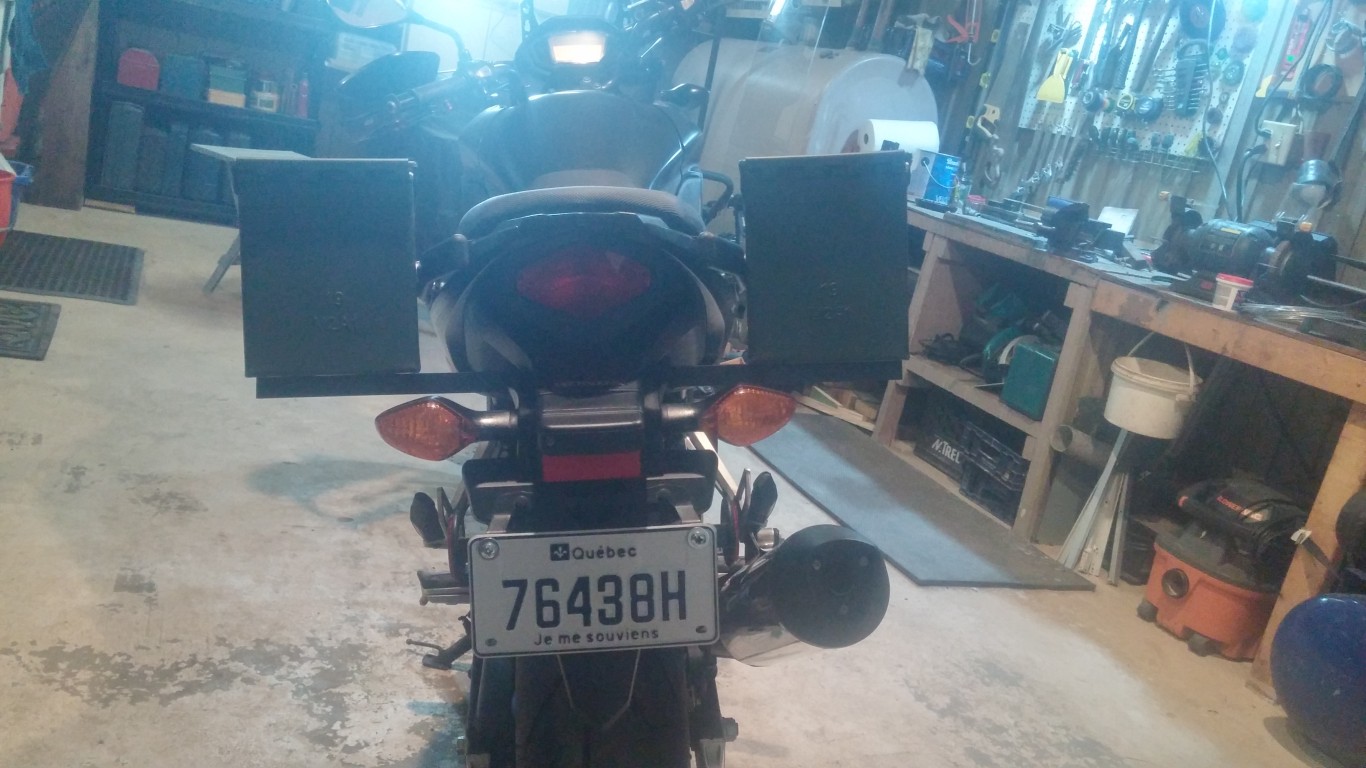

4 - givi kit does NOT include the needed 8mm 1 inch bolt to fix the bar ( front side ) that really stupid, no bolt included the the rear as well , the hole in the rear bracket can fit a bolt up to 3/8 i think , I used 1/4-20 to hold the ammo cases , 10-32 for the locks and angle bar.
I remember measurements if you ever need help . for now they look really good in green , maybe paint them black later. also you can use magnetic tape under the handles .









« Last Edit: March 14, 2020, 09:22:50 PM by ulfheonar »

Offline Oyley

  • CB500X Pro
  • ***
  • Posts: 179
  • Country: gb
    • View Profile
  • Bike: CB500x 2019
  • City / Town: West Bradford
Re: New ammo-case panniers installed
« Reply #1 on: March 14, 2020, 10:19:08 PM »
They look neat and practical...and cheap !
Do they remove easily?

Offline ulfheonar

  • CB500X Newbie
  • *
  • Posts: 8
  • Country: ca
    • View Profile
  • City / Town: pont-rouge
Re: New ammo-case panniers installed
« Reply #2 on: March 14, 2020, 10:41:44 PM »
just have to remove 2 screws from the angle bar , and 6 bolts from the 2 stock handles under the seat.

the cases are waterproof and I can open / close them 1 hand while im sit .
« Last Edit: March 14, 2020, 10:47:57 PM by ulfheonar »

Offline Ceddy17

  • CB500X Pro
  • ***
  • Posts: 400
  • Country: be
  • Ed
    • View Profile
Re: New ammo-case panniers installed
« Reply #3 on: March 15, 2020, 10:48:57 AM »
Very Nice!
Won't the cases be in the way of a pillion?
Ed.
... don't concentrate on the finger ...  Stay Safe  ...

Offline ulfheonar

  • CB500X Newbie
  • *
  • Posts: 8
  • Country: ca
    • View Profile
  • City / Town: pont-rouge
Re: New ammo-case panniers installed
« Reply #4 on: March 15, 2020, 02:13:03 PM »
i dont think so ,  they are mounted level and same angle as the backseat is . I can place a full backpack sideways on the seat fully supported.

Offline motorboy

  • CB500X Master
  • ****
  • Posts: 998
  • Country: us
    • View Profile
  • Bike: 2019 CB500X
  • City / Town: Cajun Country
Re: New ammo-case panniers installed
« Reply #5 on: March 15, 2020, 02:36:09 PM »
What do you think the whole setup weights
It's not a big motorcycle just a groovy little motorbike

Offline ulfheonar

  • CB500X Newbie
  • *
  • Posts: 8
  • Country: ca
    • View Profile
  • City / Town: pont-rouge
Re: New ammo-case panniers installed
« Reply #6 on: March 15, 2020, 03:18:59 PM »
about 12 pounds  , givi kit weights is about the same as the stock handles maybe less .

Offline richardbd

  • CB500X Pro
  • ***
  • Posts: 169
  • Country: gb
    • View Profile
Re: New ammo-case panniers installed
« Reply #7 on: March 15, 2020, 11:08:08 PM »
*Originally Posted by ulfheonar [+]
just have to remove 2 screws from the angle bar , and 6 bolts from the 2 stock handles under the seat.

the cases are waterproof and I can open / close them 1 hand while im sit .


Depends on your definition of "easy" then...

 :745:

Offline motorboy

  • CB500X Master
  • ****
  • Posts: 998
  • Country: us
    • View Profile
  • Bike: 2019 CB500X
  • City / Town: Cajun Country
Re: New ammo-case panniers installed
« Reply #8 on: March 15, 2020, 11:33:29 PM »
*Originally Posted by richardbd [+]
Depends on your definition of "easy" then...

 :745:
It could be by using wing nuts instead instead of regular nuts so you could undue with your fingers
« Last Edit: March 15, 2020, 11:34:15 PM by motorboy »
It's not a big motorcycle just a groovy little motorbike

Offline Ceddy17

  • CB500X Pro
  • ***
  • Posts: 400
  • Country: be
  • Ed
    • View Profile
Re: New ammo-case panniers installed
« Reply #9 on: March 16, 2020, 08:48:41 AM »
*Originally Posted by motorboy [+]
It could be by using wing nuts instead instead of regular nuts so you could undue with your fingers

Back in the days, I used wing nuts as extra to secure my cases on a R100RS.
Two problems: the vibrations caused the wing nuts to come loose, and I frequently injured my hands on the sharp edges.
Also, in this case (what's in a word..) I think wing nuts might be in the way of the content.
I made similar cases for my X and used regular bolts to attach them. I don't take 'm off every day so there is no effort in that.




Ed.
... don't concentrate on the finger ...  Stay Safe  ...
